#AA-2039   1/72 scale  North American YF-93A (F-86C)  Long range version of F-86 Sabre

@

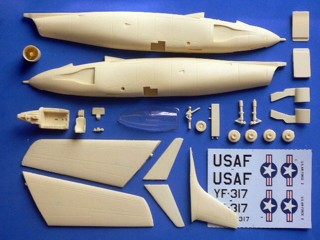

Model Kit Contents (click the image for larger photo)

Model Features

24 resin parts

+

Clear resin canopy & Decal

@

Span 164 mm

x

Length 186 mm

@

Unit price: US$40

Shipping charge: US$4.00

Each model kit contents 1 set of decal. Extra  decals can also be ordered.

Extra decal

US$0.4

@

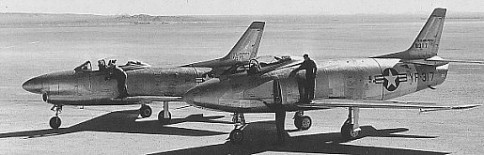

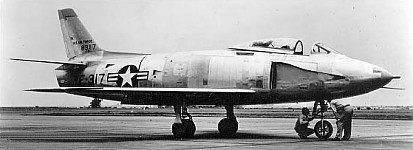

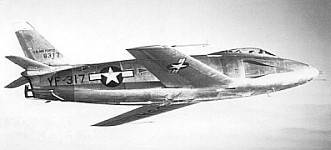

Aircraft History and Specification

In 1946, USAF recognized all the early jet fighters were lacked sufficient range to escort bombers to the target. So the proposal for a penetration fighter were requested. In 1947, North American responded with the proposal for a revised version of the F-86A, which the fuselage size was enlarged for bigger internal fuel tanks to increase its range. Since the extra fuel increased weight so the more powerful engine was chosen. A dual-wheel main landing gear was selected for the heavier weight amount. It also installed new SCR-720 radar / six cannons in nose so the air intakes relocated to the fuselage side with special NACA-designed flush air scoop. USAF ordered two prototypes which designated F-86C. In 1948, 118 production were also ordered and was redesignated, F-93. However, with the success of the B-47 bomber which speed fast enough without need from fighter escort, the F-93 production contract was cancelled. The first prototype made its first flight in 1950. Its range and speed were performed as expected. After a fly-off with Lockheed XF-90 and McDonnell XF-88, two YF-93s were handed over to NACA for further tests until late 1950s.

Type:

Purpose:

Span:

Length:

Height:

Engine:

Max.speed:

Crew:

Armament:

Long range fighter

To explore long range version of F-86A

38ft.9in.

44ft.1in.

15ft.8in.

1x Pratt & Whitney J48-P-6 turbojet

708 mph

1

6x 20mm cannon (planned)

@
